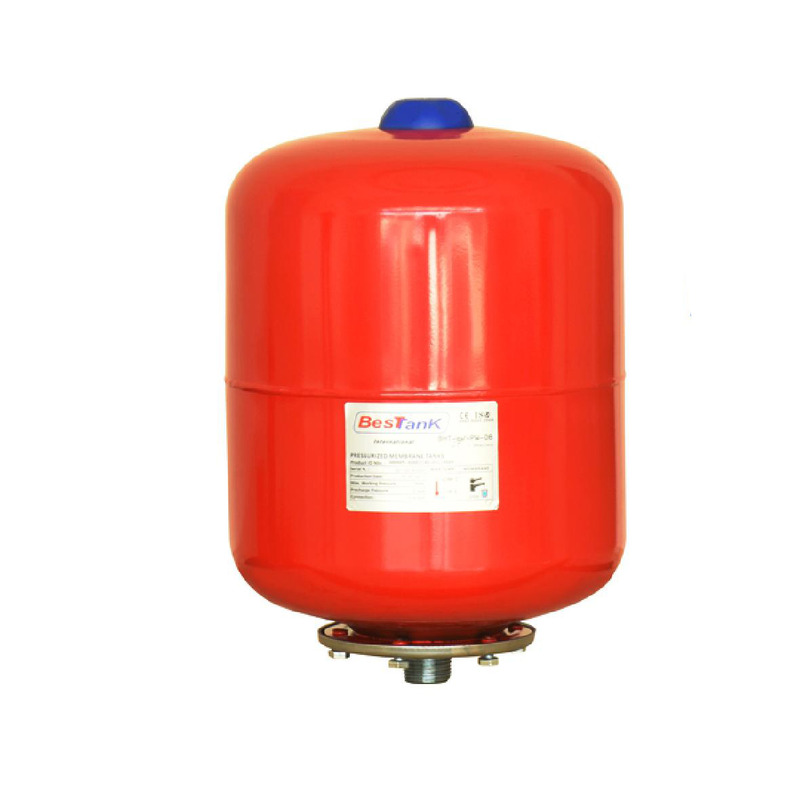

Building Material Stores 19L Water Pressure Tanks

1.0 Pieces
MOQ
Building Material Stores 19L Water Pressure Tanks
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: Pressure vessel
Dimension(L*W*H): 270 mm x 270 mm x 385mm
Capacity: 19LT
Weight: 5.9KG
Volume (m³): 0.037
Design Pressure(MPa): 8-10-16-25
Max Working Pressure(MPa): 25 MPa
Working Temperature(℃): -10 - 100 ℃
Warranty: 2 years
Key Selling Points: Energy saving
Applicable Industries: Building Material Shops
Showroom Location: Turkey, Viet Nam, India, Thailand
Working Pressure: 8Bar 10Bar 16Bar 25Bar
Tank Colour: Blue Red Green Almond
Connection: 3/4''
Membrane: EPDM/BUTYL ( made in Italy)
Working Temperature: -10C-100C
Per-Charge Pressure: 2Bar
After-sales Service Provided: Video technical support, Online support
After Warranty Service: Online support
Local Service Location: Turkey, Viet Nam, India, Thailand, South Korea
Información básica
Pago y Envío Términos
Packaging Details: Export Carton with Bubble bag /OPP bag, on carton can make according customer logo also, have each tank size and mold on the carton.
Supply Ability: 10000 Piece/Pieces per Month
Descripción de producto
Product Description

19LT PRESSURE & EXPANSION VERTICAL WITHOUT LEG
Heating Series TANKS ( CHANGEABLE MEMBRANE )

19LT PRESSURE & EXPANSION VERTICAL WITHOUT LEG
Heating Series TANKS ( CHANGEABLE MEMBRANE )
8BAR/10BAR / 16BAR / 25BAR
Model: BHT-19VL-H
Diameter : 270 mm
Height : 385 mm
Connection : 3/4" BSP/NPT
BESTANK PRESSURE & EXPANSION TANK SPECIFICATIONS
Tank Metal Body
*Interchangable membrane with screw connection flange cover at the bottom of the tank
*Flange cover and water connector made of stainless steel material
*Resistant up to 8bar - 10bar - 16bar - 25bar
*Outer surface with epoxy powder paint
*All tanks PED-CE Certified
Option: Flanges available in carbon steel upon request

Membranes
Made in Italy EPDM / BUTYL
*High quality EPDM / BUTYL membranes , hygienic certifications approved by European Union and USA Institutions
*DIN4807-3, NSF-61, WRAS, BS-6920 certificates available
Option: Butly membranes available upon request
Colour;
Orginal Colour : Blue-RAL5015 ; Red-RAL3020 ; White-RAL1013 ; Green-RAL6016
Product Paramenters
Company Profile
BESTANK International is a global key-producer ( jointventure Turkey and China ) of various type of pre-pressurized
surge&expansion&pressure tanks, Our main product ranges are ;
* BESTANK Potable Water Pressure Tanks from 2lt up to 10.000lt;
* BESTANK Heating Series Expansion Tanks from 2lt up to 10.000lt
* BESTANK Solar Series Expansion Tanks from 2lt up to 2000lt
* EDS GLOBAL 5 Years Warranty Fix Diaphragm Tanks from 2lt up to 500lt ;
* Stainless Steel Flexible Hoses from 1inch to 2inch / DN19 to DN50
* EPDM/Butyl Bladders For Booster/Hydrophore&Expansion Tanks
* Reverse Osmosis Storage Tanks
* Other Accessories Such As Pressure Switches, Float Level Switches, Pressure Gauges, Brass 5 Way Connectors with/without
CheckValves etc...
Website : www.bestank-international.com
Exhibition
Packing & Delivery
Certifications
Why Choose Us
